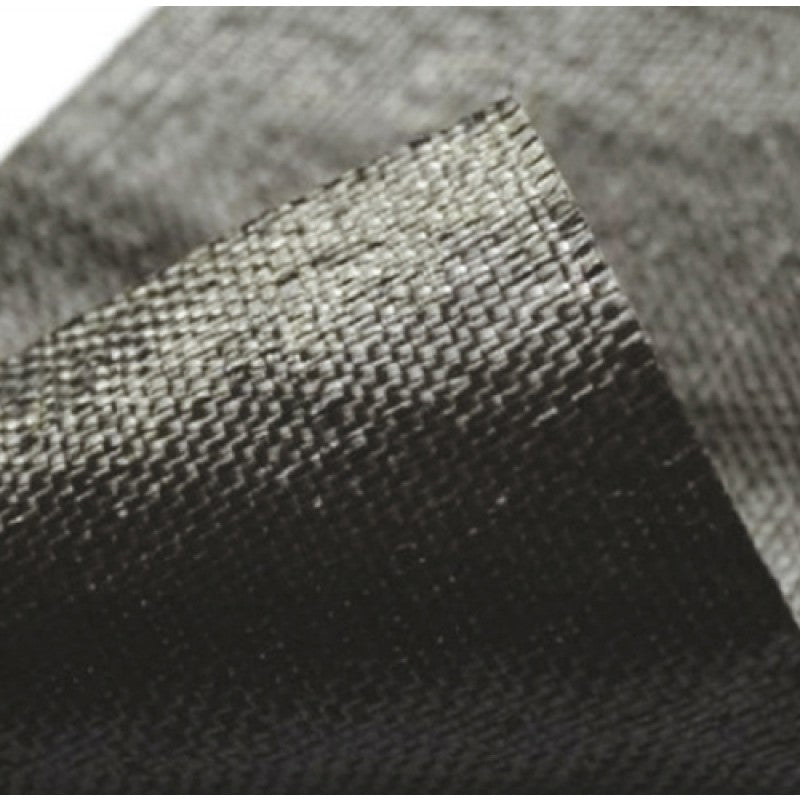

Woven Geotextile Membrane
The use of Geotextile fabric can reduce the cost of land drains and road drainage systems. Using Geotextile fabrics as a filter, medium and large granular material can be used without fines in trench drains. This could reduce the trench dimensions and eliminate the need for extra installations such as carrier pipes and manholes.
Using Geotextile fabrics to separate different quality fill can allow permeable and non permeable layers. This prevents vertical flow of unwanted leachate and allows natural horizontal drainage.
River embankments, canals, beaches and harbour areas.
Tensile Strength – MD EN ISO 10319 kN/m 17
Tensile Strength – XD EN ISO 10319 Kn/m 11
Elongation at break - MD EN ISO 10319 % 18
Elongation at break - XD EN ISO 10319 % 14
CBR Puncture Resistance EN ISO 12236 N 1500
Water-flow normal to the plane EN ISO 11058 l/m2.s 15
Characteristic Opening (pore) size EN ISO 12956 ?m 240
Thickness under 2 kPa EN 964/1 mm 0.40
Yuzet Ground Cover Fabric
